SFP Optical Transceiver

1GBPS 850NM or 1310NM 500M Multimode

Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1Gbps for up to 550m transmission distance with MMF 50/125μm and up to 275m transmission distance with MMF 62.5μm.

The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Product Features

  • 850nm or 1310nm wavelength
  • 1Gbps data rate operation
  • Compliant with SFP MSA and SFF-8472 with duplex LC type of connector
  • 500m transmission with 50/125μm MMF
  • 275m transmission with 62.5/125μm MMF
  • Very low EMI and excellent ESD protection
  • +3.3V single power supply
  • RoHS compliant
  • Case operating temperature
    – Commercial: 0°C to +70°C

Applications

  • Gigabit Ethernet
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems

Ordering Information

1GBPS 1310NM Singlemode - 20KM Reach

Description

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1Gbps for up to 20km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety
requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Product Features

  • FP laser transmitter and PIN photo-detector
  • Dual Data-rate of 1.25Gbps/1.0625Gbps Operation
  • Up to 20KM transmission distance on 9/125μm SMF
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic Monitor Interface
  • Very low EMI and excellent ESD protection
  • +3.3V single power supply
  • Compatible with RoHS
  • Operating case temperature
    – Commercial: 0°C to +70°C
    – Extended: -10°C to +80°C
    – Industrial: -40°C to +85°C

Applications

  • Gigabit Ethernet
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems

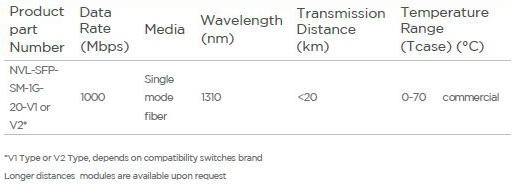

Ordering Information
